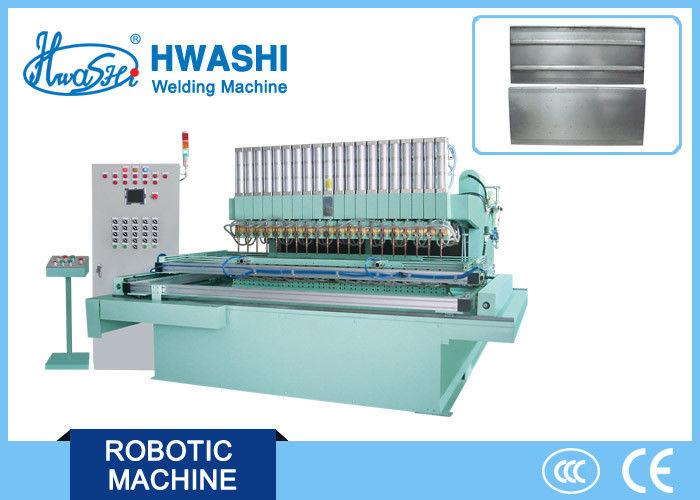

Multiple Head Automatic Sheet Metal Spot Welding Machine , Metal Plates Spot Welder

Multiple Head Automatic Sheet Metal Spot Welding Machine , Metal Plates Spot Welder

sheet metal spot welder

head welding machine

Place of Origin:

China

Nazwa handlowa:

HWASHI

Orzecznictwo:

CE/CCC/ISO

Model Number:

WL-SQ-50kx4

Skontaktuj się z nami

Poprosić o wycenę
Szczegóły Produktu
Product Name:
Multiple Head Automatic Sheet Metal Spot Welding Machine , Metal Plates Spot Welder
Application:
Widely used to Weld Sheet Metal plate
Size:
1200x1180x1850mm
Weight:
300kg
Condition:
New
Warranty:
12 months
Standard:
CE/CCC/ISO
Service Life:
8-10 years
Warunki płatności i wysyłki
Minimum Order Quantity
1 set
Cena
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Produkty powiązane
Skontaktuj się z nami
86-752-3528326
Skontaktuj się teraz
Opis produktu

Multiple Head Automatic Sheet Metal Spot Welding Machine , Metal Plates Spot Welder





DESCRIPTION





1. Intellectually  touch-screen microcomputer controller, completely digital control, automatic detection and compensation, loose welding and false welding are well prevented.



2. Panasonic touch-screen hunan-computer interface, Panasonic programer is adopted as the control hub, in charging of reading and dealing with control signal to guarantee that the machine operation is in order and effective.



3.    Groups of welding electrodes can be moved from left to right, all kinds of products are suitable to be welded. Welding electrodes can work in flexible order. No metal sheet deformation.



4.    Pneumatic mechanism, the pressure of every electrode can be adjusted, stable force is achieved. The upper electrodes have an adjustable working distance forwards and afterwards, the lower electrode mould installation is simple and flexible to be adjusted from left to right.



5.    Encoding servo motor feeding rack mechanism, equipped with high precise slide guide and automatic detection device. Has the advantages of quick reac





APPLICATION

This machine is widely used to weld metal sheet in electronic appliances, automobile and other industries.



SPECIFICATION

S.N.

Items

Parameters

1

Input voltage

380V,2 phase

2

Input current

400A

3

Output voltage

AC11.6V

4

Max.short-circuit current

40000A

5

Welding Models

16 sets

6

Welding Position

5000 points

7

Different welding current

4 sets

8

Effective welding width

1000mm (customized)

9

Effective welding length

1200mm (customized)

10

Rack mobile speed

600mm/sec

11

Rack mobile power

Servo motor

12

Cross wire feeding system

1 set



COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.



2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.



3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.



4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.



5. Quick Delivery: Our company provides just-in-time delivery.



6. Prompt Response to Customers: Your satisfaction is the goal we pursue.







          Multiple Head Automatic Sheet Metal Spot Welding Machine , Metal Plates Spot Welder 0

                                 Multiple Head Automatic Sheet Metal Spot Welding Machine , Metal Plates Spot Welder 1



Multiple Head Automatic Sheet Metal Spot Welding Machine , Metal Plates Spot Welder 2Multiple Head Automatic Sheet Metal Spot Welding Machine , Metal Plates Spot Welder 3Multiple Head Automatic Sheet Metal Spot Welding Machine , Metal Plates Spot Welder 4Multiple Head Automatic Sheet Metal Spot Welding Machine , Metal Plates Spot Welder 5
