Wire - Dropping Fully Automatic Spot Wire Welding Machine For wire mesh shape products

Wire - Dropping Fully Automatic Spot Wire Welding Machine For wire mesh shape products

maszyny do spawania drutu

sprzęt do spawania drutu

spawacz siatki drucianej 400A

Place of Origin:

China

Nazwa handlowa:

Hwashi

Orzecznictwo:

CE/CCC/ISO

Model Number:

WL-SQ-150K

Skontaktuj się z nami

Poprosić o wycenę
Szczegóły Produktu
Rozmiar::
6000x2480x1850mm
Waga::
1800kg
Stan : schorzenie::
Nowy
Żywotność::
8-10 lat
Warunki płatności i wysyłki
Minimum Order Quantity
1 set
Cena
negocjowalne
Packaging Details
wood case
Delivery Time
7 days
Supply Ability
50 sets per month
Opis produktu

DESCRIPTION

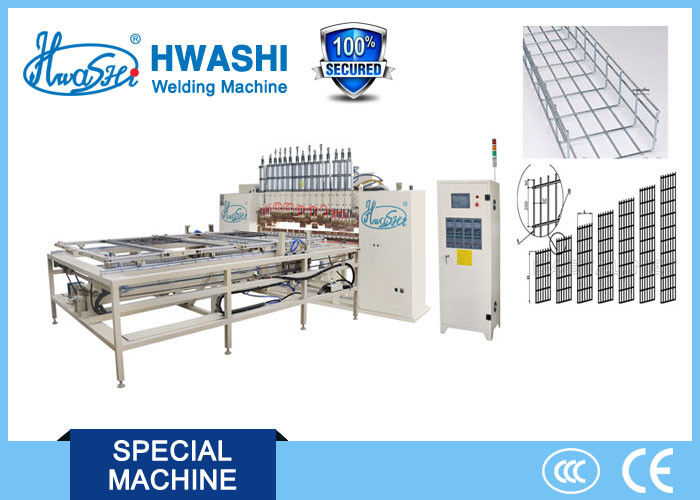

According to the specification provided by our customer, we adopt the design of ten welding heads gantry type welding machine with automatic wire dropping hopper. The worker only needs to put the material into the hopper and press the start button, then the machine will automatically load the precut wire and weld.



The machine is designed with double power source ,automatic loading wire ,automatic welding



This machine is composed of gantry type support, welding transformer, pneumatic drive device, upper and lower electrodes, electrical control system, cooling system, and PLC operation control system. The general welder for welding wire mesh in the market can only weld the square and rectangle net. However, except for square and rectangle, this machine could be used to weld triangle, circular and other shapes of wire mesh.



SPECIFICATION



Model WL-SQ-150K×2
Input Voltage two-phase 380 V
Input Current 400 A
Output Voltage 12V
Max Short Circuit Current 45000 A
Welding Effective Width 1200 mm
Welding Effective Length 1200 mm
Feeder Moving Speed 500 mm/sec
Upper Welding Cylinder ¢ 100 x 100 mm
Lower Welding Cylinder ¢ 160 x 100 mm




APPLICATION



Continuous welding Oven Glide Rack



COMPETITIVE ADVANTAGE



1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO 9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.







Wire - Dropping Fully Automatic Spot Wire Welding Machine For wire mesh shape products 0







Wire - Dropping Fully Automatic Spot Wire Welding Machine For wire mesh shape products 1



Wire - Dropping Fully Automatic Spot Wire Welding Machine For wire mesh shape products 2

Wire - Dropping Fully Automatic Spot Wire Welding Machine For wire mesh shape products 3
